Submersible electric pump are particularly recommended for solving problems in raising clear wastewater, rainwater and seepage containing small amounts of sand.
The considerable manometric head generated by the pump allow considerable differences in level to be overcome, suitable for irrigation and the fish processing sector.
On request, these pumps can be supplied with duct-foot pedestal for automatic coupling.
Motor asynchronous squirrel cage type in dielectric anti-oxide oil bath, protectin degree IP 68 and insulation class F. Single-phase feeding: 1,2 HP with incorporated motor protector and with built in capacitor; 1,5 HP with box control.Three-phase feeding: with compulsory protection to be provided by the user.

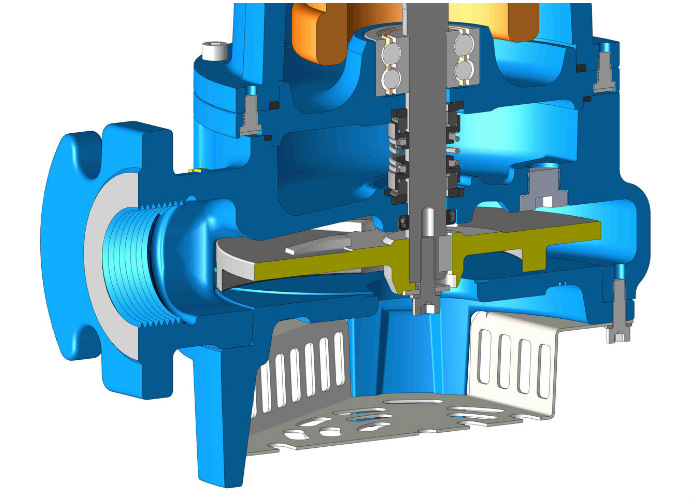

Motor housing cast iron GG 25, shaft stainless steel AISI 420, electric cable neoprene H07RN8-F, bolt A2 class AISI 304, O.rings and lip seal nitrile, double mechanical seals in oil chamber: upper graphite + silicon carbide, lower all silicon carbide.
Conductivity sensor and thermal probes on request.

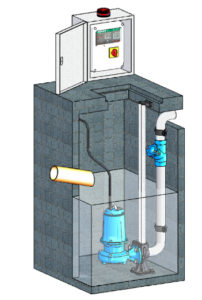

Permanent installation with automatic coupling system
| TYPE | Flow rate | Head | Free passage | Pump delivery | Motor power | DWG | Data sheet | Spare parts list | Info |
|---|---|---|---|---|---|---|---|---|---|
| STREAM 2 | max 215 l/min - 12.9 m3/h | max 18 m | diam. 7 mm | 1" 1/4 - DN 32 | 1.2 HP - 0.9 KW |  |  |  |  |
| STREAM 3 | max 235 l/min - 14.1 m3/h | max 20 m | diam. 7 mm | 1" 1/4 - DN 32 | 1.5 HP - 1.1 KW | | | | |
| STREAM 4 | max 245 l/min - 14.7 m3/h | max 24 m | diam. 8 mm | 1" 1/4 - DN 40 | 2 HP - 1.5 KW | | | | |
| STREAM 5 | max 255 l/min - 15.3 m3/h | max 30 m | diam. 8 mm | 1" 1/4 - DN 40 | 3 HP - 2.2 KW | | | | |
| STREAM 6 | max 330 l/min - 19.8 m3/h | max 32 m | diam. 10 mm | 2” – DN 50 | 4 HP - 3 KW | | | | |
| STREAM 7 | max 350 l/min - 21 m3/h | max 40 m | diam. 10 mm | 2” – DN 50 | 5.5 HP - 4.1 KW | | | | |
