TOP HYDRA submersible electric pump have been designed for all domestic uses such as draining basements, watering orchards and gardens and in general, fountains, for pumping any type of clean or slightly turbid liquid.
Well designed construction and small size make the pump easily portable without sacrificing reliability. The overall result is a pump which offers a long working life with little and simple maintenance needs.
The special construction ensures long life, with limited and easy maintenance also the outlet vertical, encourages its use in wells of limited size.
Motor asynchronous squirrel cage type in dielectric anti-oxide oil bath, protectin degree IP 68 and insulation class F. Single-phase feeding with incorporated motor protector and the three-phase feeding with compulsory protection to be provided by the user.
Motor housing Cast iron GG 25, shaft stainless steel AISI 420, electric cable neoprene H07RN8-F oil resistant, bolt A2 class AISI 304, O.ring and lip seal nitrile, mechanical seal on silicon carbide + allumina.

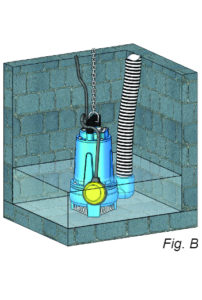

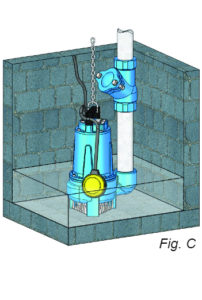

Trasportable installation: Fig. B; fixed Fig. C
The magnetic float allows the pump to work in small wells where the electromechanical float does not have the space to do its work.

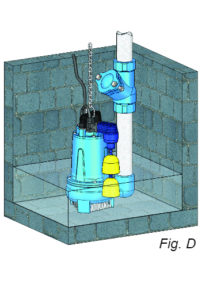

Used with dirty water by providing a regular cleaning (Fig. D)
| TYPE | Flow rate | Head | Free passage | Pump delivery | Motor power | DWG | Data sheet | Spare parts list | Info |
|---|---|---|---|---|---|---|---|---|---|
| TOP HYDRA 1 | max 190 l/min - 11.4 m3/h | max 8 m | diam. 12 mm | 1" 1/4 | 0.4 HP - 0.3 KW |  |  |  |  |
| TOP HYDRA 2 | max 215 l/min - 12.9 m3/h | max 9 m | diam. 12 mm | 1" 1/4 | 0.5 HP - 0.37 KW | | | | |
| TOP HYDRA 3 | max 325 l/min - 19.5 m3/h | max 10 m | diam. 17 mm | 1" 1/2 | 0.8 HP - 0.6 KW | | | | |
| TOP HYDRA 4 | max 380 l/min - 22.8 m3/h | max 12 m | diam. 17 mm | 1" 1/2 | 1 HP - 0.75 KW | | | | |
| TOP HYDRA 5 | max 360 l/min - 21.6 m3/h | max 8 m | diam. 17 mm | 2" | 0.8 HP - 0.6 KW | | | | |
| TOP HYDRA 6 | max 450 l/min - 27 m3/h | max 10 m | diam. 17 mm | 2" | 1 HP - 0.75 KW | | | | |
| TOP HYDRA 7 | max 580 l/min - 34.8 m3/h | max 15 m | diam. 22 mm | 2" | 1.5 HP - 1.1 KW | | | | |
| TOP HYDRA 8 | max 670 l/min - 40.2 m3/h | max 17 m | diam. 22 mm | 2" | 2 HP - 1.5 KW | | | | |
| TOP HYDRA 10 | max 490 l/min - 29.4 m3/h | max 18 m | diam. 22 mm | 1" 1/2 | 1.5 HP - 1.1 KW | | | | |
| TOP HYDRA 11 | max 580 l/min - 34.8 m3/h | max 19 m | diam. 22 mm | 1" 1/2 | 2 HP - 1.5 KW | | | | |
