TOP ENERGY series

TOP ENERGY series

Submersible electropumps
For black wastewater, civil/industrial sewers, vortex impeller.

Universal portable submersible electric motor pump. Best uses for draining dirty liquids and sewage with sespended solid or fibrous materials, on costruction sites and for dewatering floated fields, emptying out sump pits and septic tanks, for domestic and industrial waste water.

The overall result is a pump which offers a long working life with little and simple maintenance needs. The special construction ensures long life, with limited and easy maintenance also the outlet vertical, encourages its use in wells of limited size.

Motor asynchronous squirrel cage type in dielectric anti-oxide oil bath, protectin degree IP 68 and insulation class F. Single-phase feeding with incorporated motor protector and the three-phase feeding with compulsory protection to be provided by the user.

Motor housing Cast iron GG 25, shaft stainless steel AISI 420, electric cable neoprene H07RN8-F oil resistant, bolt A2 class AISI 304, O.ring and lip seal nitrile, mechanical seal on silicon carbide + allumina.

Example of installation

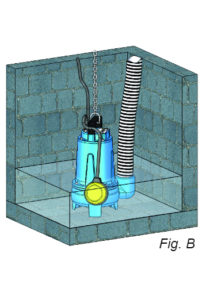

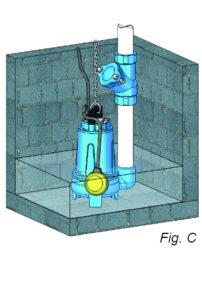

Trasportable installation Fig. B; fixed Fig. C

The magnetic float allows the pump to work in small wells where the electromechanical float does not have the space to do its work.

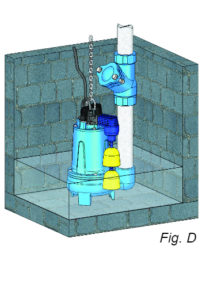

Used with dirty water by providing a regular cleaning (Fig. D)


TYPEFlow rateHeadFree passagePump deliveryMotor powerDWGData sheetSpare parts listInfo
TOP ENERGY 1max 140 l/min - 8.4 m3/hmax 6 mdiam. 20 mm1" 1/40.4 HP - 0.3 KW
TOP ENERGY 2max 155 l/min - 9.3 m3/hmax 6 mdiam. 20 mm1" 1/40.5 HP - 0.37 KW
TOP ENERGY 3max 205 l/min - 12.3 m3/hmax 8 mdiam. 30 mm1" 1/20.8 HP - 0.6 KW
TOP ENERGY 4max 255 l/min - 15.3 m3/hmax 10 mdiam. 30 mm1" 1/21 HP - 0.75 KW
TOP ENERGY 5max 300 l/min - 18 m3/hmax 6 mdiam. 40 mm2"0.8 HP - 0.6 KW
TOP ENERGY 6max 400 l/min - 24 m3/hmax 6 mdiam. 40 mm2"1 HP - 0.75 KW
TOP ENERGY 7max 520 l/min - 31.2 m3/hmax 12 mdiam. 40 mm2"1.5 HP - 1.1 KW
TOP ENERGY 8max 600 l/min - 36 m3/hmax 15 mdiam. 40 mm2"2 HP - 1.5 KW
TOP ENERGY 75max 455 l/min - 27.3 m3/hmax 10 mdiam. 50 mm2"1.5 HP - 1.1 KW
TOP ENERGY 85max 540 l/min - 32.4 m3/hmax 11 mdiam. 50 mm2"2 HP - 1.5 KW
