The particular strength of TECNO submersible electric pump, obtained without sacrificing their easy-tohandle qualities, make them suitable for use in domestic/civil drainage jobs and for medium-heavy duty professional uses.
Best uses on construction sites and for dewatering floated areas, for civil and industrial waste water, emptying out sump pits, water re circulation in painting or cooling plants. On request, these pumps can be supplied with duct-foot pedestal for automatic coupling.
Motor asynchronous squirrel cage type in dielectric anti-oxide oil bath, protectin degree IP 68 and insulation class F.
Single-phase feeding with incorporated motor protector and the three-phase feeding with compulsory protection to be provided by the user.

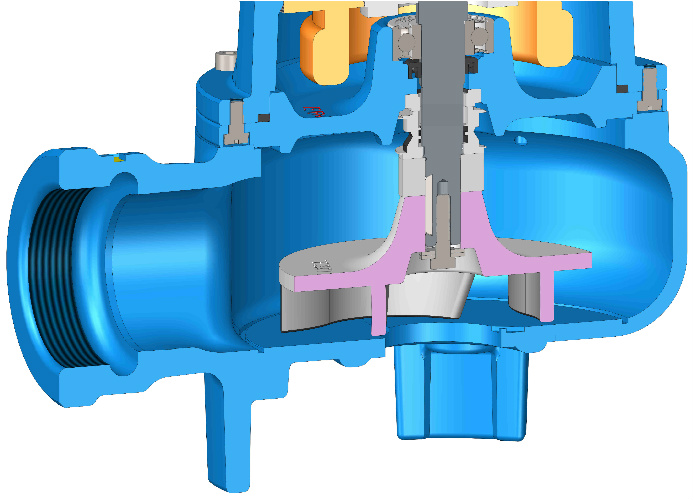

Motor housing Cast iron GG 25, shaft stainless steel AISI 420, electric cable neoprene H07RN8-F oil resistant, bolt A2 class AISI 304, O.ring and lip seal nitrile, mechanical seal on silicon carbide + allumina.
Permanent installation with automatic coupling system
| TYPE | Flow rate | Head | Free passage | Pump delivery | Motor power | DWG | Data sheet | Spare parts list | Info |
|---|---|---|---|---|---|---|---|---|---|
| TECNO 1 | max 190 l/min - 11.4 m3/h | max 8 m | diam. 12 mm | 1" 1/4 | 0.4 HP - 0.3 KW |  |  |  |  |
| TECNO 2 | max 215 l/min - 12.9 m3/h | max 9 m | diam. 12 mm | 1" 1/4 | 0.5 HP - 0.37 KW | | | | |
| TECNO 3 | max 325 l/min - 19.5 m3/h | max 10 m | diam. 17 mm | 1" 1/2 | 0.8 HP - 0.6 KW | | | | |
| TECNO 4 | max 380 l/min - 22.8 m3/h | max 12 m | diam. 17 mm | 1" 1/2 | 1 HP - 0.75 KW | | | | |
| TECNO 5 | max 360 l/min - 21.6 m3/h | max 8 m | diam. 17 mm | 2" | 0.8 HP - 0.6 KW | | | | |
| TECNO 6 | max 450 l/min - 27 m3/h | max 10 m | diam. 117 mm | 2" | 1 HP - 0.75 KW | | | | |
| TECNO 7 | max 580 l/min - 34.8 m3/h | max 15 m | diam. 22 mm | 2" | 1.5 HP - 1.1 KW | | | | |
| TECNO 8 | max 670 l/min - 40.2 m3/h | max 17 m | diam. 22 mm | 2" | 2 HP - 1.5 KW | | | | |
| TECNO 10 | max 490 l/min - 29.4 m3/h | max 18 m | diam. 22 mm | 1" 1/2 | 1.5 HP - 1.1 KW | | | | |
| TECNO 11 | max 580 l/min - 34.8 m3/h | max 19 m | diam. 22 mm | 1" 1/2 | 2 HP - 1.5 KW | | | | |
