Universal portable submersible electric motor pump.
Best uses for draining dirty liquids and sewage with sespended solid or fibrous materials, on costruction sites and for dewatering floated fields, emptying out sump pits and septic tanks, for domestic and industrial waste water.
On request, these pumps can be supplied with duct-foot pedestal for automatic coupling.
Motor asynchronous squirrel cage type in dielectric anti-oxide oil bath, protectin degree IP 68 and insulation class F. Single-phase feeding with incorporated motor protector and the three-phase feeding with compulsory protection to be provided by the user.

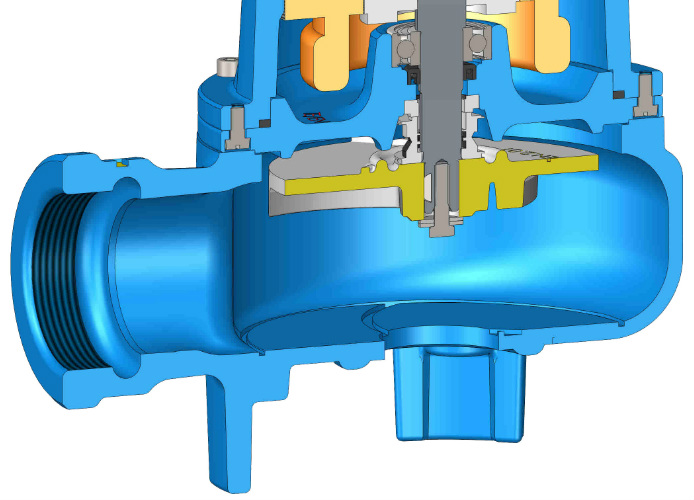

Motor housing Cast iron GG 25, shaft stainless steel AISI 420, electric cable neoprene H07RN8-F oil resistant, bolt A2 class AISI 304, O.ring and lip seal nitrile mechanical seal on silicon carbide + allumina.

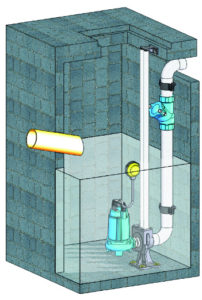

Permanent installation with automatic coupling system
| TYPE | Flow rate | Head | Free passage | Pump delivery | Motor power | DWG | Data sheet | Spare parts list | Info |
|---|---|---|---|---|---|---|---|---|---|
| ENERGY 1 | max 140 l/min - 8.4 m3/h | max 6 m | diam. 20 mm | 1" 1/4 | 0.4 HP - 0.3 KW |  |  |  |  |
| ENERGY 2 | max 155 l/min - 9.3 m3/h | max 6 m | diam. 20 mm | 1" 1/4 | 0.5 HP - 0.37 KW | | | | |
| ENERGY 3 | max 205 l/min - 12.3 m3/h | max 8 m | diam. 30 mm | 1" 1/2 | 0.8 HP - 0.6 KW | | | | |
| ENERGY 4 | max 255 l/min - 15.3 m3/h | max 10 m | diam. 30 mm | 1" 1/2 | 1 HP - 0.75 KW | | | | |
| ENERGY 5 | max 300 l/min - 18 m3/h | max 6 m | diam. 40 mm | 2" | 0.8 HP - 0.6 KW | | | | |
| ENERGY 6 | max 400 l/min - 24 m3/h | max 6 m | diam. 40 mm | 2" | 1 HP - 0.75 KW | | | | |
| ENERGY 7 | max 520 l/min - 31.2 m3/h | max 12 m | diam. 40 mm | 2" | 1.5 HP - 1.1 KW | | | | |
| ENERGY 8 | max 600 l/min - 36 m3/h | max 15 m | diam. 40 mm | 2" | 2 HP - 1.5 KW | | | | |
| ENERGY 75 | max 455 l/min - 27.3 m3/h | max 10 m | diam. 50 mm | 2" | 1.5 HP - 1.1 KW | | | | |
| ENERGY 85 | max 540 l/min - 32.4 m3/h | max 11 m | diam. 50 mm | 2" | 2 HP - 1.5 KW | | | | |
| ENERGY 9 | max 700 l/min - 42 m3/h | max 17 m | diam. 50 mm | 2" | 3 HP - 2.2 KW | | | | |
