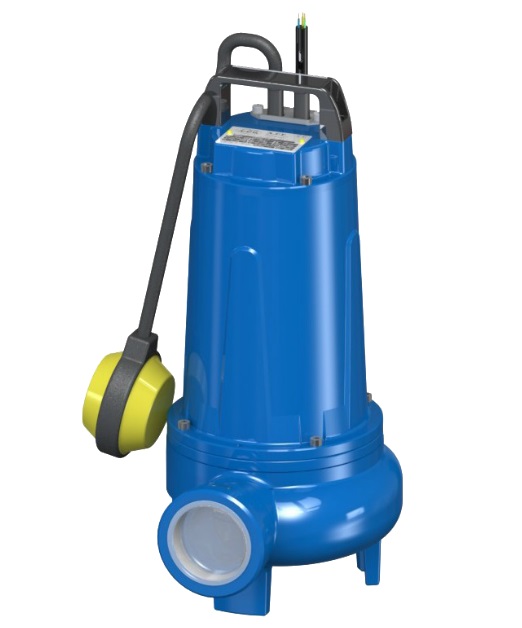

TECNO series Clear water

For clear or slightly dirty water, open multi-vane fully submerged impeller.

TYPE	Flow rate	Head	Free passage	Pump delivery	Motor power
TECNO 1	max 190 l/min - 11.4 m³/h	max 8 m	diam. 12 mm	1" 1/4	0.4 HP - 0.3 KW
TECNO 2	max 215 l/min - 12.9 m³/h	max 9 m	diam. 12 mm	1" 1/4	0.5 HP - 0.37 KW
TECNO 3	max 325 l/min - 19.5 m³/h	max 10 m	diam. 17 mm	1" 1/2	0.8 HP - 0.6 KW
TECNO 4	max 380 l/min - 22.8 m³/h	max 12 m	diam. 17 mm	1" 1/2	1 HP - 0.75 KW
TECNO 5	max 360 l/min - 21.6 m³/h	max 8 m	diam. 17 mm	2"	0.8 HP - 0.6 KW
TECNO 6	max 450 l/min - 27 m³/h	max 10 m	diam. 117 mm	2"	1 HP - 0.75 KW
TECNO 7	max 580 l/min - 34.8 m³/h	max 15 m	diam. 22 mm	2"	1.5 HP - 1.1 KW
TECNO 8	max 670 l/min - 40.2 m³/h	max 17 m	diam. 22 mm	2"	2 HP - 1.5 KW
TECNO 10	max 490 l/min - 29.4 m³/h	max 18 m	diam. 22 mm	1" 1/2	1.5 HP - 1.1 KW
TECNO 11	max 580 l/min - 34.8 m³/h	max 19 m	diam. 22 mm	1" 1/2	2 HP - 1.5 KW

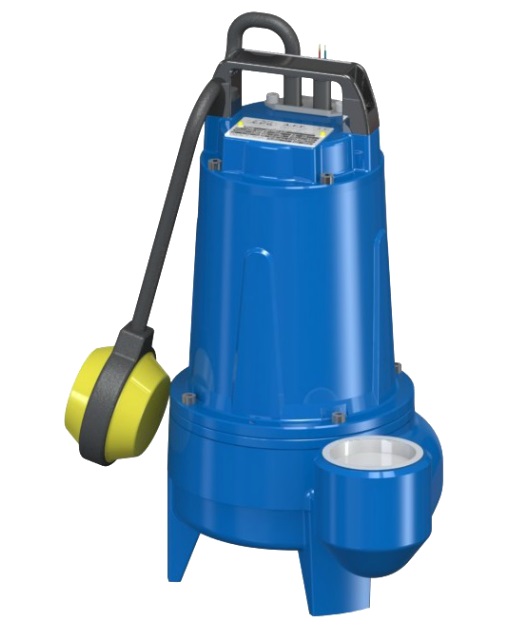

TOP TECNO series Clear water

For clear or slightly dirty water, open multi-vane fully submerged impeller.

TYPE	Flow rate	Head	Free passage	Pump delivery	Motor power
TOP TECNO 1	max 190 l/min - 11.4 m³/h	max 8 m	diam. 12 mm	1" 1/4	0.4 HP - 0.3 KW
TOP TECNO 2	max 215 l/min - 12.9 m³/h	max 9 m	diam. 12 mm	1" 1/4	0.5 HP - 0.37 KW
TOP TECNO 3	max 325 l/min - 19.5 m³/h	max 10 m	diam. 17 mm	1" 1/2	0.8 HP - 0.6 KW
TOP TECNO 4	max 380 l/min - 22.8 m³/h	max 12 m	diam. 17 mm	1" 1/2	1 HP - 0.75 KW
TOP TECNO 5	max 360 l/min - 21.6 m³/h	max 8 m	diam. 17 mm	2"	0.8 HP - 0.6 KW
TOP TECNO 6	max 450 l/min - 27 m³/h	max 10 m	diam. 17 mm	2"	1 HP - 0.75 KW
TOP TECNO 7	max 580 l/min - 34.8 m³/h	max 15 m	diam. 22 mm	2"	1.5 HP - 1.1 KW
TOP TECNO 8	max 670 l/min - 40.2 m³/h	max 16 m	diam. 22 mm	2"	2 HP - 1.5 KW
TOP TECNO 10	max 490 l/min - 29.4 m³/h	max 18 m	diam. 22 mm	1" 1/2	1.5 HP - 1.1 KW
TOP TECNO 11	max 580 l/min - 34.8 m³/h	max 19 m	diam. 33 mm	1" 1/2	2 HP - 1.5 KW

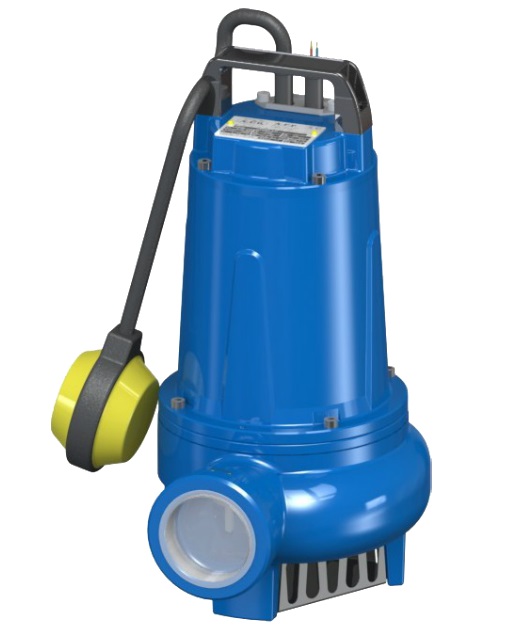

HYDRA series Clear water

For clear or slightly dirty water, open multi-vane fully submerged impeller + strainer inox.

TYPE	Flow rate	Head	Free passage	Pump delivery	Motor power
HYDRA 1	max 190 l/min - 11.4 m³/h	max 8 m	diam. 12 mm	1" 1/4	0.4 HP - 0.3 KW
HYDRA 2	max 215 l/min - 12.9 m³/h	max 9 m	diam. 12 mm	1" 1/4	0.5 HP - 0.37 KW
HYDRA 3	max 325 l/min - 19.5 m³/h	max 10 m	diam. 17 mm	1" 1/2	0.8 HP - 0.6 KW
HYDRA 4	max 380 l/min - 22.8 m³/h	max 12 m	diam. 17 mm	1" 1/2	1 HP - 0.75 KW
HYDRA 5	max 360 l/min - 21.6 m³/h	max 8 m	diam. 17 mm	2"	0.8 HP - 0.6 KW
HYDRA 6	max 450 l/min - 27 m³/h	max 10 m	diam. 17 mm	2"	1 HP - 0.75 KW
HYDRA 7	max 580 l/min - 34.8 m³/h	max 15 m	diam. 22 mm	2"	1.5 HP - 1.1 KW
HYDRA 8	max 670 l/min - 40.2 m³/h	max 17 m	diam. 22 mm	2"	2 HP - 1.5 KW
HYDRA 10	max 490 l/min - 29.4 m³/h	max 18 m	diam. 22 mm	1" 1/2	1.5 HP - 1.1 KW
HYDRA 11	max 580 l/min - 34.8 m³/h	max 19 m	diam. 22 mm	1" 1/2	2 HP - 1.5 KW

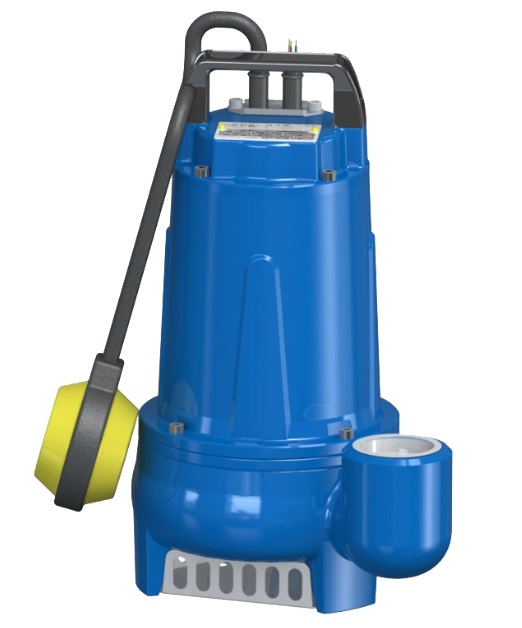

TOP HYDRA series Clear water

For clear or slightly dirty water, open multi-vane fully submerged impeller + strainer inox.

TYPE	Flow rate	Head	Free passage	Pump delivery	Motor power
TOP HYDRA 1	max 190 l/min - 11.4 m³/h	max 8 m	diam. 12 mm	1" 1/4	0.4 HP - 0.3 KW
TOP HYDRA 2	max 215 l/min - 12.9 m³/h	max 9 m	diam. 12 mm	1" 1/4	0.5 HP - 0.37 KW
TOP HYDRA 3	max 325 l/min - 19.5 m³/h	max 10 m	diam. 17 mm	1" 1/2	0.8 HP - 0.6 KW
TOP HYDRA 4	max 380 l/min - 22.8 m³/h	max 12 m	diam. 17 mm	1" 1/2	1 HP - 0.75 KW
TOP HYDRA 5	max 360 l/min - 21.6 m³/h	max 8 m	diam. 17 mm	2"	0.8 HP - 0.6 KW
TOP HYDRA 6	max 450 l/min - 27 m³/h	max 10 m	diam. 17 mm	2"	1 HP - 0.75 KW
TOP HYDRA 7	max 580 l/min - 34.8 m³/h	max 15 m	diam. 22 mm	2"	1.5 HP - 1.1 KW
TOP HYDRA 8	max 670 l/min - 40.2 m³/h	max 17 m	diam. 22 mm	2"	2 HP - 1.5 KW
TOP HYDRA 10	max 490 l/min - 29.4 m³/h	max 18 m	diam. 22 mm	1" 1/2	1.5 HP - 1.1 KW
TOP HYDRA 11	max 580 l/min - 34.8 m³/h	max 19 m	diam. 22 mm	1" 1/2	2 HP - 1.5 KW

ENERGY series Clear water

For black wastewater, civil/industrial sewers, vortex impeller.

TYPE	Flow rate	Head	Free passage	Pump delivery	Motor power
ENERGY 1	max 140 l/min - 8.4 m³/h	max 6 m	diam. 20 mm	1" 1/4	0.4 HP - 0.3 KW
ENERGY 2	max 155 l/min - 9.3 m³/h	max 6 m	diam. 20 mm	1" 1/4	0.5 HP - 0.37 KW
ENERGY 3	max 205 l/min - 12.3 m³/h	max 8 m	diam. 30 mm	1" 1/2	0.8 HP - 0.6 KW
ENERGY 4	max 255 l/min - 15.3 m³/h	max 10 m	diam. 30 mm	1" 1/2	1 HP - 0.75 KW
ENERGY 5	max 300 l/min - 18 m³/h	max 6 m	diam. 40 mm	2"	0.8 HP - 0.6 KW
ENERGY 6	max 400 l/min - 24 m³/h	max 6 m	diam. 40 mm	2"	1 HP - 0.75 KW
ENERGY 7	max 520 l/min - 31.2 m³/h	max 12 m	diam. 40 mm	2"	1.5 HP - 1.1 KW
ENERGY 8	max 600 l/min - 36 m³/h	max 15 m	diam. 40 mm	2"	2 HP - 1.5 KW
ENERGY 75	max 455 l/min - 27.3 m³/h	max 10 m	diam. 50 mm	2"	1.5 HP - 1.1 KW
ENERGY 85	max 540 l/min - 32.4 m³/h	max 11 m	diam. 50 mm	2"	2 HP - 1.5 KW
ENERGY 9	max 700 l/min - 42 m³/h	max 17 m	diam. 50 mm	2"	3 HP - 2.2 KW

TOP ENERGY series Clear water

For black wastewater, civil/industrial sewers, vortex impeller.

TYPE	Flow rate	Head	Free passage	Pump delivery	Motor power
TOP ENERGY 1	max 140 l/min - 8.4 m³/h	max 6 m	diam. 20 mm	1" 1/4	0.4 HP - 0.3 KW
TOP ENERGY 2	max 155 l/min - 9.3 m³/h	max 6 m	diam. 20 mm	1" 1/4	0.5 HP - 0.37 KW
TOP ENERGY 3	max 205 l/min - 12.3 m³/h	max 8 m	diam. 30 mm	1" 1/2	0.8 HP - 0.6 KW
TOP ENERGY 4	max 255 l/min - 15.3 m³/h	max 10 m	diam. 30 mm	1" 1/2	1 HP - 0.75 KW
TOP ENERGY 5	max 300 l/min - 18 m³/h	max 6 m	diam. 40 mm	2"	0.8 HP - 0.6 KW
TOP ENERGY 6	max 400 l/min - 24 m³/h	max 6 m	diam. 40 mm	2"	1 HP - 0.75 KW
TOP ENERGY 7	max 520 l/min - 31.2 m³/h	max 12 m	diam. 40 mm	2"	1.5 HP - 1.1 KW
TOP ENERGY 8	max 600 l/min - 36 m³/h	max 15 m	diam. 40 mm	2"	2 HP - 1.5 KW
TOP ENERGY 75	max 455 l/min - 27.3 m³/h	max 10 m	diam. 50 mm	2"	1.5 HP - 1.1 KW
TOP ENERGY 85	max 540 l/min - 32.4 m³/h	max 11 m	diam. 50 mm	2"	2 HP - 1.5 KW

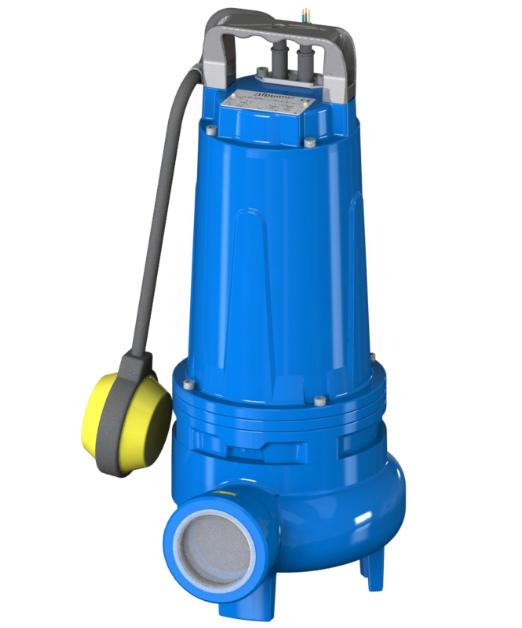

PROFESSIONAL series Clear water

For draining dirty liquids and sewage with suspended solid or fibrous materials, vortex impeller.

TYPE	Flow rate	Head	Free passage	Pump delivery	Motor power
PROFESSIONAL E100	max 400 l/min - 24 m³/h	max 7 m	diam. 50 mm	2"	1 HP - 0.75 KW
PROFESSIONAL E120	max 440 l/min - 26.4 m³/h	max 9 m	diam. 50 mm	2"	1.2 HP - 0.9 KW
PROFESSIONAL E150	max 455 l/min - 27.3 m³/h	max 10 m	diam. 50 mm	2"	1.5 HP - 1.1 KW
PROFESSIONAL E200	max 540 l/min - 32.4 m³/h	max 11 m	diam. 50 mm	2"	2 HP - 1.5 KW

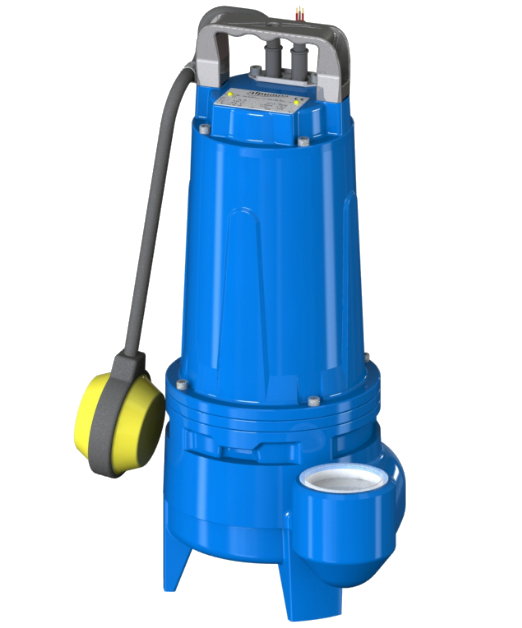

TOP PROFESSIONAL series Clear water

For draining dirty liquids and sewage with suspended solid or fibrous materials, vortex impeller.

TYPE	Flow rate	Head	Free passage	Pump delivery	Motor power
TOP PROFESSIONAL E100	max 400 l/min - 24 m³/h	max 7 m	diam. 50 mm	2"	1 HP - 0.75 KW
TOP PROFESSIONAL E120	max 440 l/min - 26.4 m³/h	max 9 m	diam. 50 mm	2"	1.2 HP - 0.9 KW
TOP PROFESSIONAL E150	max 455 l/min - 27.3 m³/h	max 10 m	diam. 50 mm	2"	1.5 HP - 1.1 KW
TOP PROFESSIONAL E200	max 540 l/min - 32.4 m³/h	max 11 m	diam. 5 mm	2"	2 HP - 1.5 KW

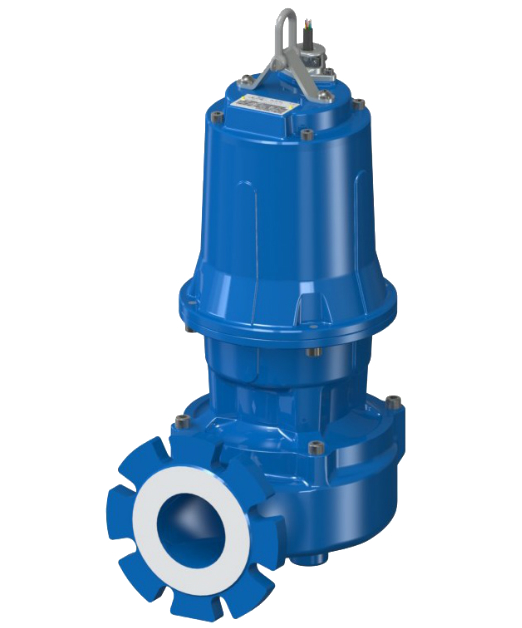

HM series

The ultimate pumps for waste water and purification equipment, with single channel closed impeller.

TYPE	Flow rate	Head	Free passage	Pump delivery	Motor power
HM 65/102	max 750 l/min - 45 m³/h	max 18 m	diam. 40 mm	DN 65	2 HP - 1.5 KW
HM 65/103	max 1000 l/min - 60 m³/h	max 22 m	diam. 40 mm	DN 65	3 HP - 2.2 KW
HM 66/111	max 1100 l/min - 66 m³/h	max 20 m	diam. 45 mm	DN 65	4 HP - 3 KW
HM 80/111	max 1200 l/min - 72 m³/h	max 18 m	diam. 45 mm	DN 80	4 HP - 3 KW
HM 66/112	max 1400 l/min - 84 m³/h	max 24 m	diam. 45 mm	DN 65	5.5 HP - 4.1 KW
HM 80/112	max 1500 l/min - 90 m³/h	max 22 m	diam. 45 mm	DN 80	5.5 HP - 4.1 KW
HM 81/114	max 2230 l/min - 133.8 m³/h	max 32 m	diam. 55 mm	DN 80	10 HP - 7.5 KW

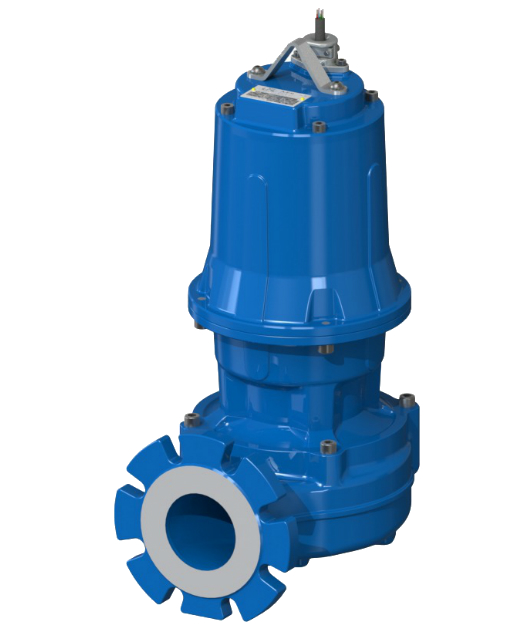

HV series

The ultimate pumps for waste water and purification equipment, with vortex impeller.

TYPE	Flow rate	Head	Free passage	Pump delivery	Motor power
HV 65/302	max 615 l/min - 36.9 m³/h	max 9 m	diam. 55 mm	DN 65	2 HP - 1.5 KW
HV 65/303	max 830 l/min - 49.8 m³/h	max 13 m	diam. 55 mm	DN 65	3 HP - 2.2 KW
HV 80/302	max 710 l/min - 42.6 m³/h	max 8 m	diam. 65 mm	DN 80	2 HP - 1.5 KW
HV 80/303	max 920 l/min - 55.2 m³/h	max 12 m	diam. 65 mm	DN 80	3 HP - 2.2 KW
HV 66/311	max 1050 l/min - 63 m³/h	max 20 m	diam. 65 mm	DN 65	4 HP - 5.5 KW
HV 80/311	max 1150 l/min - 69 m³/h	max 18 m	diam. 65 mm	DN 80	4 HP - 3.0 KW
HV 66/312	max 1220 l/min - 73.2 m³/h	max 22 m	diam. 65 mm	DN 65	5.5 HP - 4.1 KW
HV 80/312	max 1320 l/min - 79.2 m³/h	max 20 m	diam. 65 mm	DN 80	5.5 HP - 4.1 KW
HV 81/313	max 1730 l/min - 103.8 m³/h	max 22 m	diam. 70 mm	DN 80	7.5 HP - 5.5 KW
HV 81/314	max 1900 l/min - 114 m³/h	max 24 m	diam. 70 mm	DN 80	10 HP - 7.5 KW

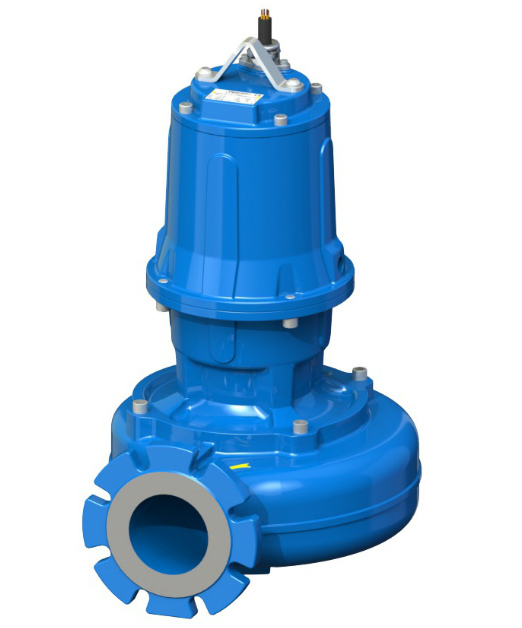

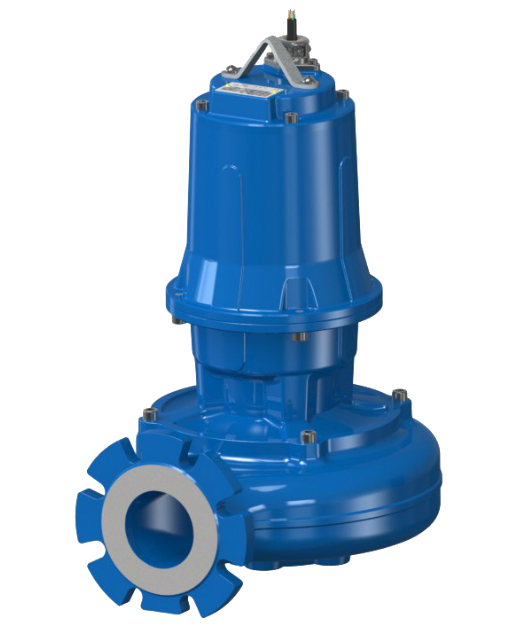

QM series

The ultimate pumps for waste water and purification equipment, with single channel opened impeller.

TYPE	Flow rate	Head	Free passage	Pump delivery	Motor power
QM 80/160	max 1310 l/min - 78.6 m³/h	max 9 m	diam. 75 mm	DN 80	1.5 HP - 1.1 KW
QM 80/161	max 1360 l/min - 81.6 m³/h	max 12 m	diam. 75 mm	DN 80	2 HP - 1.5 KW
QM 80/162	max 1400 l/min - 84 m³/h	max 13 m	diam. 75 mm	DN 80	3 HP - 2.2 KW
QM 80/163	max 1600 l/min - 96 m³/h	max 15 m	diam. 75 mm	DN 80	4 HP - 3 KW
QM 100/161	max 1460 l/min - 87.6 m³/h	max 10 m	diam. 85 mm	DN 100	2 HP - 1.5 KW
QM 100/162	max 1550 l/min - 93 m³/h	max 12 m	diam. 85 mm	DN 100	3 HP - 2.2 KW
QM 100/163	max 1690 l/min - 101.4 m³/h	max 13 m	diam. 85 mm	DN 100	4 HP - 3 KW
QM 101/165	max 2570 l/min - 154.2 m³/h	max 14 m	diam. 90 mm	DN 100	5.5 HP - 4.1 KW
QM 101/166	max 2980 l/min - 178.8 m³/h	max 16 m	diam. 90 mm	DN 100	7.5 HP - 5.5 KW

QV series

The ultimate pumps for waste water and purification equipment, with vortex impeller.

TYPE	Flow rate	Head	Free passage	Pump delivery	Motor power
QV 65/359	max 660 l/min - 39.6 m³/h	max 7 m	diam. 60 mm	DN 65	1.2 HP - 0.9 KW
QV 65/360	max 780 l/min - 46.8 m³/h	max 8 m	diam. 60 mm	DN 65	1.5 HP - 1.1 KW
QV 80/359	max 800 l/min - 48 m³/h	max 6 m	diam. 70 mm	DN 80	1.2 HP - 0.9 KW
QV 80/360	max 910 l/min - 54.6 m³/h	max 7 m	diam. 70 mm	DN 80	1.5 HP - 1.1 KW
QV 80/361	max 1230 l/min - 73.8 m³/h	max 8 m	diam. 80 mm	DN 80	2 HP - 1.5 KW
QV 80/362	max 1350 l/min - 81 m³/h	max 9 m	diam. 80 mm	DN 80	3 HP - 2.2 KW
QV 80/363	max 1470 l/min - 88.2 m³/h	max 11 m	diam. 80 mm	DN 80	4 HP - 3 KW
QV 100/361	max 1400 l/min - 84 m³/h	max 7 m	diam. 90 mm	DN 100	2 HP - 1.5 KW
QV 100/362	max 1580 l/min - 94.8 m³/h	max 8 m	diam. 90 mm	DN 100	3 HP - 2.2 KW
QV 100/363	max 1700 l/min - 102 m³/h	max 10 m	diam. 90 mm	DN 100	4 HP - 3 KW
QV 101/365	max 2280 l/min - 136.81 m³/h	max 12 m	diam. 90 mm	DN 100	5.5 HP - 4.1 KW
QV 101/366	max 2660 l/min - 159.6 m³/h	max 14 m	diam. 90 mm	DN 100	7.5 HP - 5.5 KW

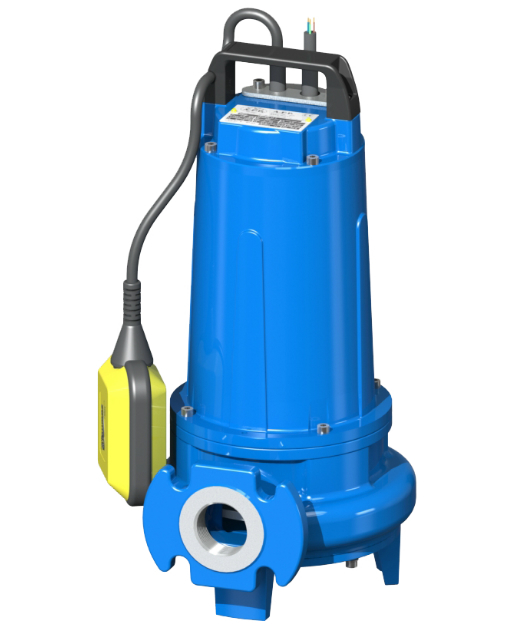

MASTER series Clear water

For pumping dirty liquids with suspended solid or fibrous materials, with open multi-vane fully and inlet macerator system, tempered steel cutting edges

TYPE	Flow rate	Head	Free passage	Pump delivery	Motor power
MASTER 2	max 215 l/min - 12.9 m³/h	max 16 m	diam. 6 mm	1" 1/4 - DN 32	1.2 HP - 0.9 KW
MASTER 3	max 235 l/min - 14.1 m³/h	max 18 m	diam. 6 mm	1" 1/4 - DN 32	1.5 HP - 1.1 KW
MASTER 4	max 245 l/min - 14.7 m³/h	max 22 m	diam. 7 mm	1" 1/4 - DN 40	2 HP - 1.5 KW
MASTER 5	max 255 l/min - 15.3 m³/h	max 28 m	diam. 7 mm	1" 1/4 - DN 40	3 HP - 2.5 KW
MASTER 6	max 330 l/min - 19.8 m³/h	max 32 m	diam. 9 mm	2” – DN 50	4 HP - 3 KW
MASTER 7	max 350 l/min - 21 m³/h	max 36 m	diam. 9 mm	2” – DN 50	5.5 HP - 4.1 KW

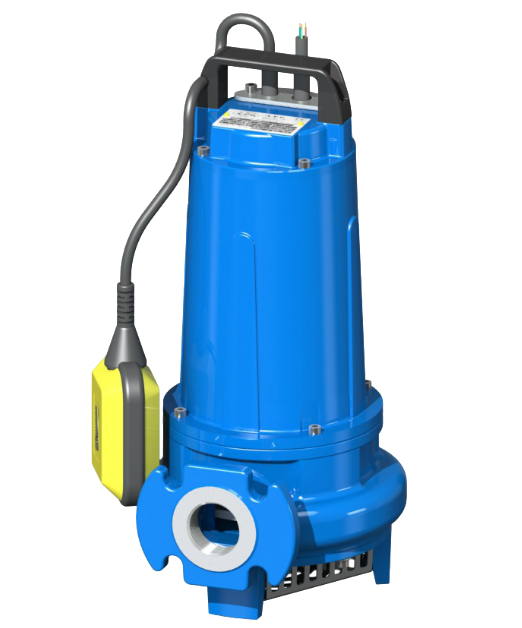

STREAM series Clear water

For clear or slightly dirty water, open multi-vane fully submerged impeller + strainer inox.

TYPE	Flow rate	Head	Free passage	Pump delivery	Motor power
STREAM 2	max 215 l/min - 12.9 m³/h	max 18 m	diam. 7 mm	1" 1/4 - DN 32	1.2 HP - 0.9 KW
STREAM 3	max 235 l/min - 14.1 m³/h	max 20 m	diam. 7 mm	1" 1/4 - DN 32	1.5 HP - 1.1 KW
STREAM 4	max 245 l/min - 14.7 m³/h	max 24 m	diam. 8 mm	1" 1/4 - DN 40	2 HP - 1.5 KW
STREAM 5	max 255 l/min - 15.3 m³/h	max 30 m	diam. 8 mm	1" 1/4 - DN 40	3 HP - 2.2 KW
STREAM 6	max 330 l/min - 19.8 m³/h	max 32 m	diam. 10 mm	2” – DN 50	4 HP - 3 KW
STREAM 7	max 350 l/min - 21 m³/h	max 40 m	diam. 10 mm	2” – DN 50	5.5 HP - 4.1 KW

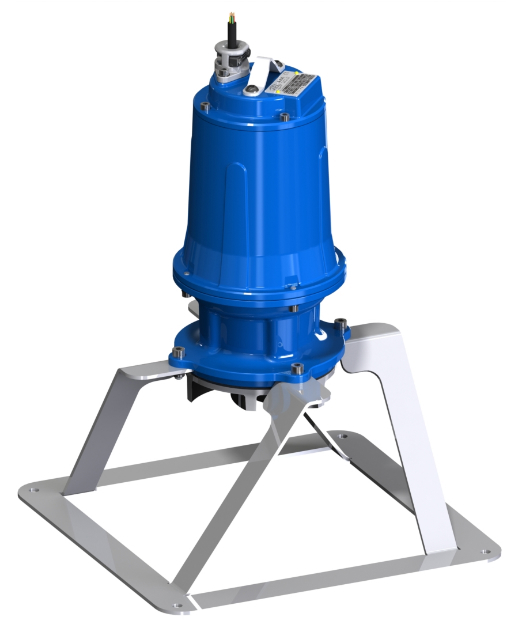

SPREAD series Slightly dirty water

Submersible agitator, with vortex impeller.

TYPE	Motor power	Working surface
SPREAD 65/359	1.2 HP - 0.9 KW	diam. 1.5 m
SPREAD 65/360	1.5 HP - 1.1 KW	diam. 2 m
SPREAD 80/361	2 HP - 1.5 KW	diam. 2.5 m
SPREAD 80/362	3 HP - 2.2 KW	diam. 3 m
SPREAD 80/363	4 HP - 3 KW	diam. 3.5 m

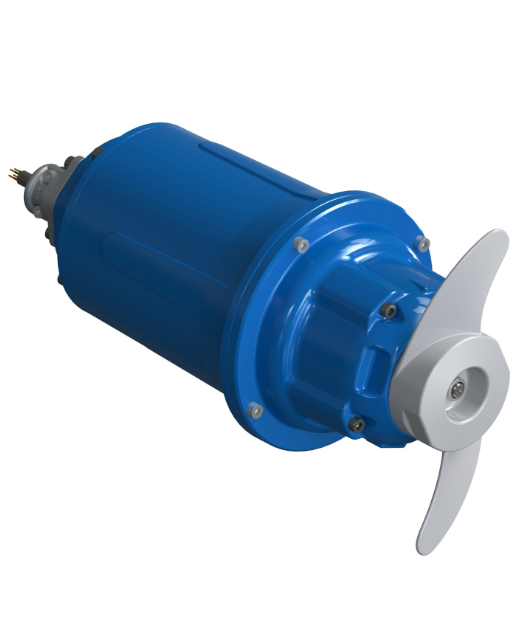

MIX series Clear water

Submersible mixer, with selfcleaning 2-blades propeller.

TYPE	Flow rate	Motor power	RPM	Helix diameter
MIX 75-6	max 55 l/min	0.75 HP - 0.55 KW	960 1/min	230 mm
MIX 100-4	max 90 l/min	1 HP - 0.75 KW	1450 1/min	230 mm
MIX 150-4	max 120 l/min	1.5 HP - 1.1 KW	1450 1/min	210 mm
MIX 150-8	max 120 l/min	1,5 HP - 1,1 KW	720 1/min	230 mm
MIX 200-6	max 150 l/min	2 HP - 1,5 KW	960 1/min	230 mm

Automatic coupling system type A

Two guide tubes

TYPE	DWG	Data sheet	Spare parts list	Info
RS.28.001M.A
RS.28.002M.A
RS.28.003M.A
RS.28.001F.A
RS.28.002F.A
RS.28.003F.A
RS.28.0011.A
RS.28.0021.A
RS.28.0031.A

Automatic coupling system type AV

One guide tube

TYPE	DWG	Data sheet	Spare parts list	Info
RS.28.001M.AV
RS.28.002M.AV
RS.28.003M.AV
RS.28.001F.AV
RS.28.002F.AV
RS.28.003F.AV
RS.28.0011.AV
RS.28.0021.AV
RS.28.0031.AV

Automatic coupling system type E

Two guide tubes

TYPE	DWG	Data sheet	Spare parts list	Info
RS.28.0043.E
RS.28.0044.E

Automatic coupling system type B

TYPE	DWG	Data sheet	Spare parts list	Info
DN 65 (PN 10/16)
DN 80 (PN 10/16)
DN 100 (PN 10/16)
DN 150 (PN 10/16)
DN 200 (PN 10/16)

Automatic coupling system type AX

Two guide tubes

TYPE	DWG	Data sheet	Spare parts list	Info
RS.28.001.AX
RS.28.002.AX
RS.28.003.AX
RS.28.0011.AX
RS.28.0021.AX
RS.28.0031.AX

Ball threaded check valve

Ball check valve

DWG	Data sheet	Spare parts list	Info

Flanged ball check valve

Ball check valve

DWG	Data sheet	Spare parts list	Info

Threaded ball check valve on INOX AISI 316

Ball check valve on INOX

DWG	Data sheet	Spare parts list	Info

Flanged ball check valve on INOX AISI 316

Ball check valve on INOX AISI 316

DWG	Data sheet	Spare parts list	Info

Threaded ball check valve on PVC-U

Ball check valve on PVC-U

DWG	Data sheet	Spare parts list	Info

Solvent socket ball check valve on PVC-U

Ball check valve on PVC-U

DWG	Data sheet	Spare parts list	Info

Soft seated short body gate valve

Short body gate valve

DWG	Data sheet	Spare parts list	Info

PRATIKA 50 / A-B-C-D

Polyethylene pumping station on 50 liter

DWG	Data sheet	Spare parts list	Info

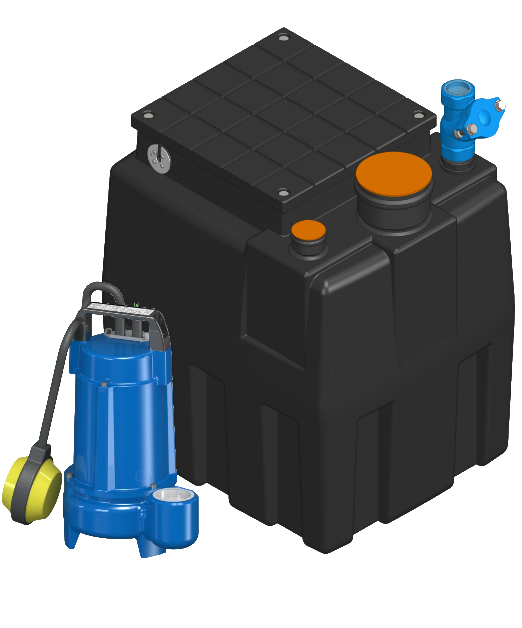

PRATIKA 100

Polyethylene pumping station on 100 liter

DWG	Data sheet	Spare parts list	Info

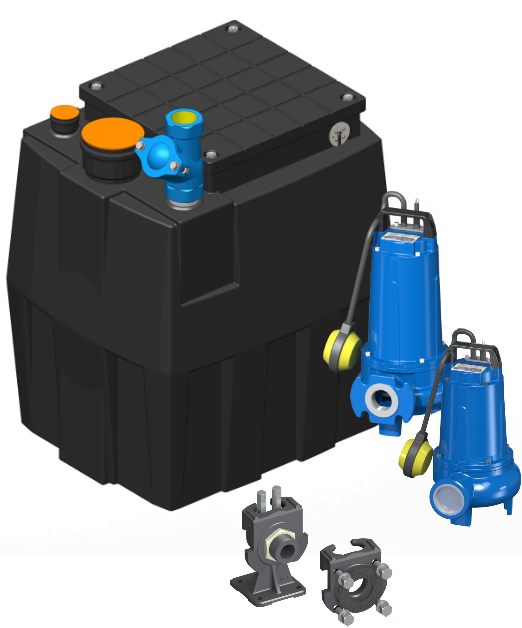

PRATIKA 200 DA

Polyethylene pumping station on 200 liter with or without automatic coupling system

TYPE	DWG	Data sheet	Spare parts list	Info
PRATIKA 200
PRATIKA 200 DA

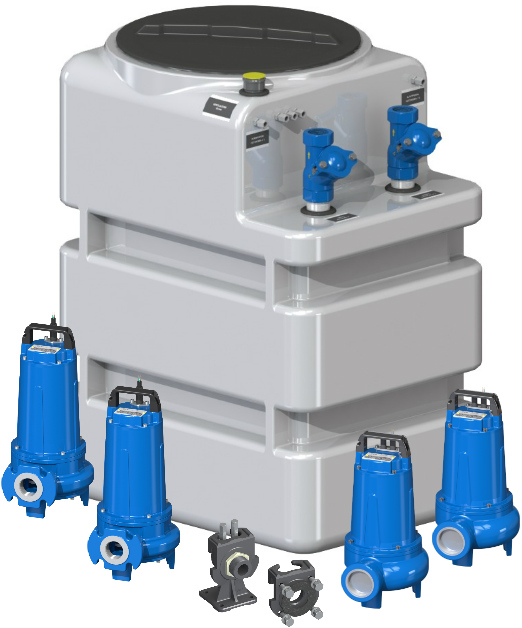

PRATIKA 500 2DA

Polyethylene pumping station on 500 liter, complete with 1 or 2 electropumps and the automatic coupling system

TYPE	DWG	Data sheet	Spare parts list	Info
PRATIKA 500 DA
PRATIKA 500 2DA

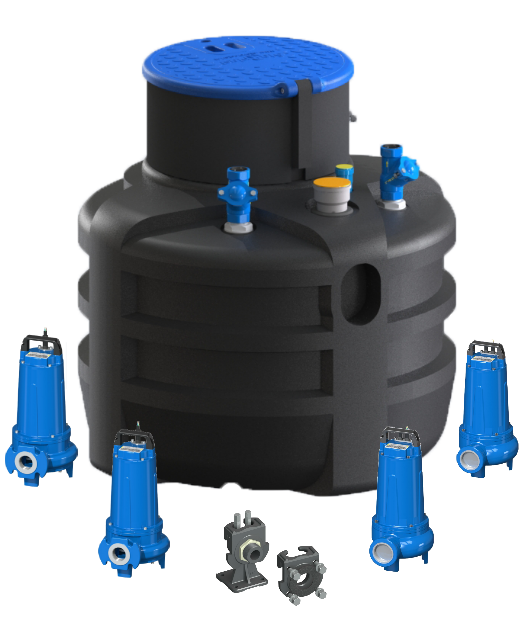

PRATIKA 1000A 2DA

Polyethylene pumping station on 1000 liter, complete with 2 electropumps and the automatic coupling system

DWG	Data sheet	Spare parts list	Info

PRATIKA 1600A 2DA

Polyethylene pumping station on 1600 liter, complete with 2 electropumps and the automatic coupling system

DWG	Data sheet	Spare parts list	Info

PRATIKA 2000A 2DA

Polyethylene pumping station on 2000 liter, complete with 2 electropumps and the automatic coupling system

DWG	Data sheet	Spare parts list	Info

PRATIKA 3500A 2DA

Polyethylene pumping station on 3500 liter, complete with 2 electropumps and the automatic coupling system

DWG	Data sheet	Spare parts list	Info

PRATIKA 4500A 2DA

Polyethylene pumping station on 4500 liter, complete with 2 electropumps and the automatic coupling system

DWG	Data sheet	Spare parts list	Info

Block float bracket

INOX bracket

DWG	Data sheet	Spare parts list	Info

Counterweight GR 1000

Counterweight GR 1000 for float

DWG	Data sheet	Spare parts list	Info

Throttle valve

Throttle valve

DWG	Data sheet	Spare parts list	Info

Flange with hose connection at 90°

Flange with hose connection at 90°

DWG	Data sheet	Spare parts list	Info

Flanged cast iron special junction

Flanged cast iron special junction

DWG	Data sheet	Spare parts list	Info

Flanged cast iron elbow at 90°

Cast iron elbow

DWG	Data sheet	Spare parts list	Info

Chain

Chain

DWG	Data sheet	Spare parts list	Info

Threaded flange

Threaded flange

DWG	Data sheet	Spare parts list	Info

Welding flange

Welding flange

DWG	Data sheet	Spare parts list	Info

Linenized gasket

Linenized gasket

DWG	Data sheet	Spare parts list	Info

Ball bearings

Ball bearings

DWG	Data sheet	Spare parts list	Info

Mechanical seal

Mechanical seal

DWG	Data sheet	Spare parts list	Info

Cable

Cable

DWG	Data sheet	Spare parts list	Info

Foot support

Foot support

DWG	Data sheet	Spare parts list	Info

Cable gland and lock plug SHUKO

IP 67 cable entry and clamp for the passage of full plug shuko

DWG	Data sheet	Spare parts list	Info

Fine bubble membrane air diffusers

Membrane dish with precision holes.

DWG	Data sheet	Spare parts list	Info

Fine bubble tubolar diffusers

Membrane tube with precision holes

DWG	Data sheet	Spare parts list	Info

Oil

Oil

DWG	Data sheet	Spare parts list	Info

Grid

Grid

DWG	Data sheet	Spare parts list	Info

Handle

Handle

DWG	Data sheet	Spare parts list	Info

SMALL

Electromechanical float switch

DWG	Data sheet	Spare parts list	Info

KEY

Electromechanical float switch

DWG	Data sheet	Spare parts list	Info

MAC3

Electromechanical float switch

DWG	Data sheet	Spare parts list	Info

ITA 1

Electromechanical free suspension float switch

DWG	Data sheet	Spare parts list	Info

MS1

Electromechanical free suspension float switch

DWG	Data sheet	Spare parts list	Info

ITA1 ATEX

Electromechanical free suspension float switch

DWG	Data sheet	Spare parts list	Info

AGMA W

Magnetic float switch

DWG	Data sheet	Spare parts list	Info

Quick coupling PP fitting

Fitting

DWG	Data sheet	Spare parts list	Info

3 pieces PVC fitting

Fitting

DWG	Data sheet	Spare parts list	Info

Control panels SMART PRO 1 series

Control panels for surface and submersible electric pumps.

DWG	Data sheet	Spare parts list	Info

Control panels SMART PRO 2 series

Control panels for surface and submersible electric pumps.

DWG	Data sheet	Spare parts list	Info

Control panels PLUVIO 1 series

"First rain system" for 1 submersible electric pump

DWG	Data sheet	Spare parts list	Info

Control panels PLUVIO 2 series

"First rain system" for 2 submersible electric pumps

DWG	Data sheet	Spare parts list	Info

Control panels DIRECTO 1 series

Control panels for surface and submersible electric pumps

DWG	Data sheet	Spare parts list	Info

Control panels DIRECTO 2 series

Control panels for surface and submersible electric pumps

DWG	Data sheet	Spare parts list	Info
